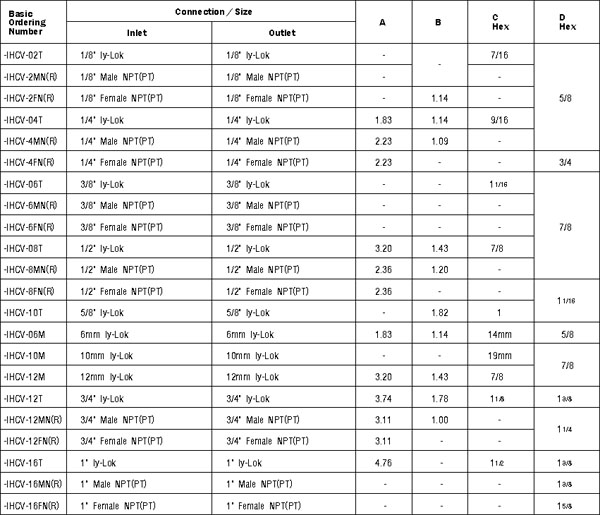

Table of Demensions



ISO Tapered thread, put "R" digit at the last of part number.

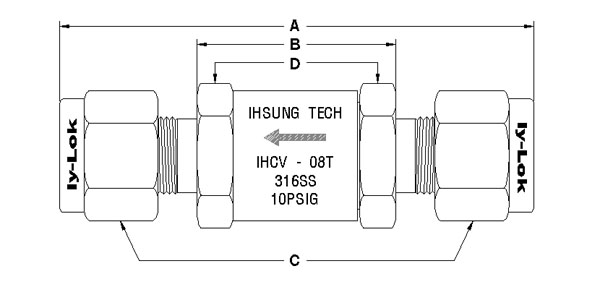

Dimensions shown with Iy-Lok nuts finger-tight, where applicable.
All dimensions are in inches (except where mm is indicated) - for reference only, subject to change.

¡¡
